Double insulation stainless steel tanks. Electrical resistance heater and cooling water solenoid valves for  temperature conditioning Chiller for option High precision axial piston pump,Variable output, robust manual adjustment via handwheel with integral precision measuring scale Magnetic coupling ensures no material leakage Digital pressure gauge for controlling pressure  3.Mixing Head Auniform foam mixture distribution on the continuously moving facing High pressure impingement style mixing, Self-cleaning design Electric wiring and connections for each equipment part of the high pressure foam dispensing machine. Electric control cabinet complete with electric power part PLC,electric controls and devices for high pressure foaming machine Alarm function with acoustic warning. Â

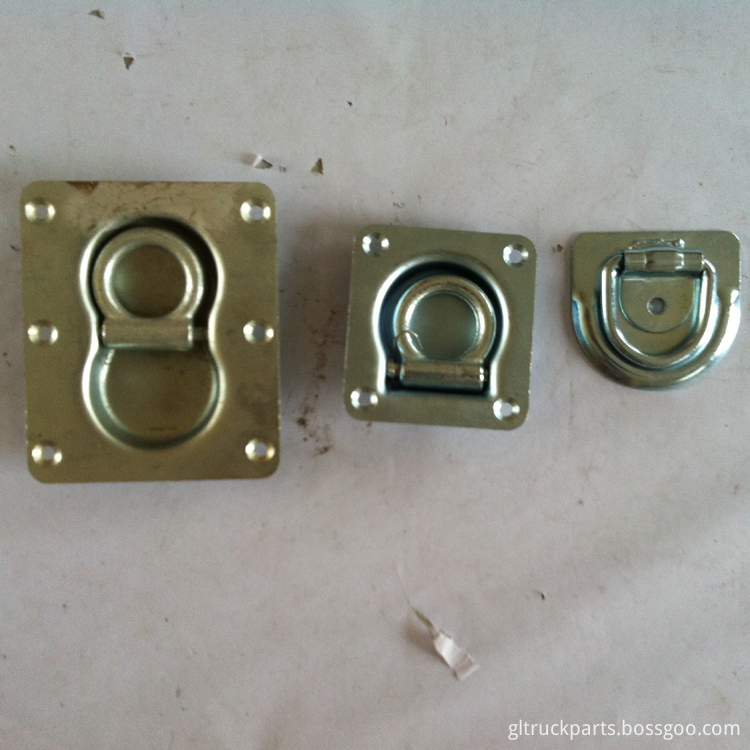

Jiaxing Ganland Auto Parts Co., Ltd 's one of the main products is Lashing Ring , Truck Lashing Rings Lashing D Rings, Heavy Duty Deck Rope Rings,Lashing D Rings, Forged Tie Down Lashing Rings, Recessed Floor Rings, Lorry Lashing D Ring, Cargo Equipment Floor Ring, Overturning Lashing Deck Ring, D Ring with Snap Hook, O Ring, Forged D Ring , Tie Down Rings , Recessed Lashing Ring,Belt Ring for Trucks & Trailers etc
For the materials of our Lashing Ring, we have two materials. One is steel and the other is 304 stainless steel. For steel material, we have two surface treatments. One is galvanized zinc plated surface and the other is hot dip zinc plated surface. For 304 stainless steel, it is polished surface treatment. They are widely used in Various Vans, Trucks, Trailers, Containers and other commercial vehicles
For the types of our Lashing Ring, we have many different sizes and types to suit for different commercial vehicles and cabinets. For more choices, please check the Truck & Van & Trailer Door Hinge Series or contact us directly.
We have many big clients in domestic, like CIMC, DONGFENG etc. Also we have many clients overseas. For more information, you are warmly welcome to send us an email. We will feedback to you ASAP.
Lashing Ring Series Heavy Duty Deck Rope Rings, Forged Tie Down Lashing Rings, Recessed Floor Rings,Forged D Ring,Tie Down Rings,Recessed Lashing Ring Jiaxing Ganland Auto Parts Co., Ltd. , http://www.gltruckparts.com
1.Product description
Â
Two-component polyurethane foam machine mainly applies for two components the combined polyether and isocyanate, to convey the component by high-precision high-pressure piston pump, after flow detection, detecting signal to make closed-loop control to pump speed through the PLC feedback, thus to precisely control the flow, to achieve accurate measurement of traffic. The measured components will get into control loop through high and low conversion valve or get mixed into the mixing head. Equipment is assembled with a jacket of the working tank (volume optional), blade filter, plate heat exchanger, magnetic mixed coupling, meanwhile according to different configuration of equipment, to select the volume type flow meter or mass flow meter. The equipment has the advantages of adjustable proportion of foaming ratio online, real-time flow display, adjustable working pressure, real-time display control of material temperature, good mixing effect and stable foam quality.
2. Technical Parameter:
Â
No.
Project
Technical Parameters
1
Model
Jct-4248
2
Suitable Viscosity of Materials(20ºC)
Polyether Polyols: ~2500MPas
PolyisocyanateISO :Â ~1000MPas
3
Injection Pressure
10 ~ 20Mpa (adjustable)
4
Injection Flow(Mixing Ratio1:1)
Minimum per Second: 1300g
5
Mixing Ratio Scope
1:3~3:1(adjustable)
6
Way of Injection
Direct Input of Weight, Error≤±0.5%
7
Control of Material Temperature
Material Temperature can be Controlled at 20 Degrees in Summer
Error≤±0.5ºC
8
Injection of Materials; Repeat Injection Precision
≤±0.5%
9
Hydraulic System
  Flow Rate 10 L / min; System Pressure
      16 ~ 20MPa
10
TemperatureofHydraulic Oil
<50ºC (Cooling of Oil Returned)
11
Volume of Tanks
300L
12
Required Amount of Compressed Air
 Dry and Free of Oil: P: 0.7Mpa Q: 600NL/min
13
Temperature Control System Chiller
3 Pieces
14
Metering Pump Motor
Power: 11Kw Speed: 1450r / m
15
Area
2500*1560*2800MM
16
Total Power
                 30KW
17
Â
Total Weight of Each Machine
About 2500KG
18
Voltage Used
220V /380v
3.Componets of the machine:
1)Storage Components:
2.Metering Unit
4.Electrical control system
4.Warranty
one year warranty from date of shipment, and we will provide the technical support for the whole life.
Â
Model NO.: Jct-4248
Automatic Grade: Automatic
Product Type: PU Foam Machine
Machine Color: as Required
Weight: 1000~2000kgs
Fter-Sales Service Provided: Pressional Engineers
Voltage: Customized
Power(W): 30kw
Dimension(L*W*H): 1380*1400*2700
Trademark: JinChenTong
Transport Package: Standard Export Packing
Specification: 1*40gp
Origin: China
HS Code: 84778090
